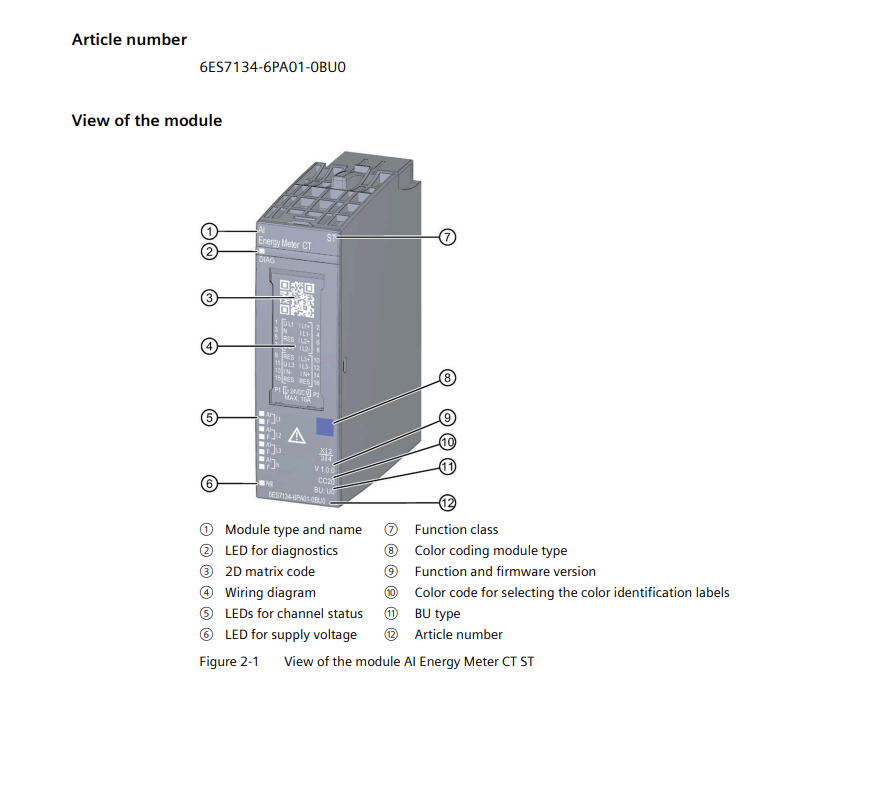

6ES7134-6PA01-0BU0 Siemens analog input module Product function
● Voltage measurement Yes
— without voltage transformer Yes
— with voltage transformer Yes
● Current measurement Yes; max. 3 + neutral conductor
— without current transformer No
— with current transformer Yes; 1 A or 5 A current transformer
— With Rogowski coil No
— With current-voltage-converter No
● Energy measurement Yes
● Frequency measurement Yes
● Power measurement Yes
● Active power measurement Yes
● Reactive power measurement Yes
● Power factor measurement Yes
● Active factor measurement Yes
● Reactive power compensation Yes
● Line analysis No
● I&M data Yes; I&M0 to I&M3
● Isochronous mode No
